Smart Alarm Kit WS-02A

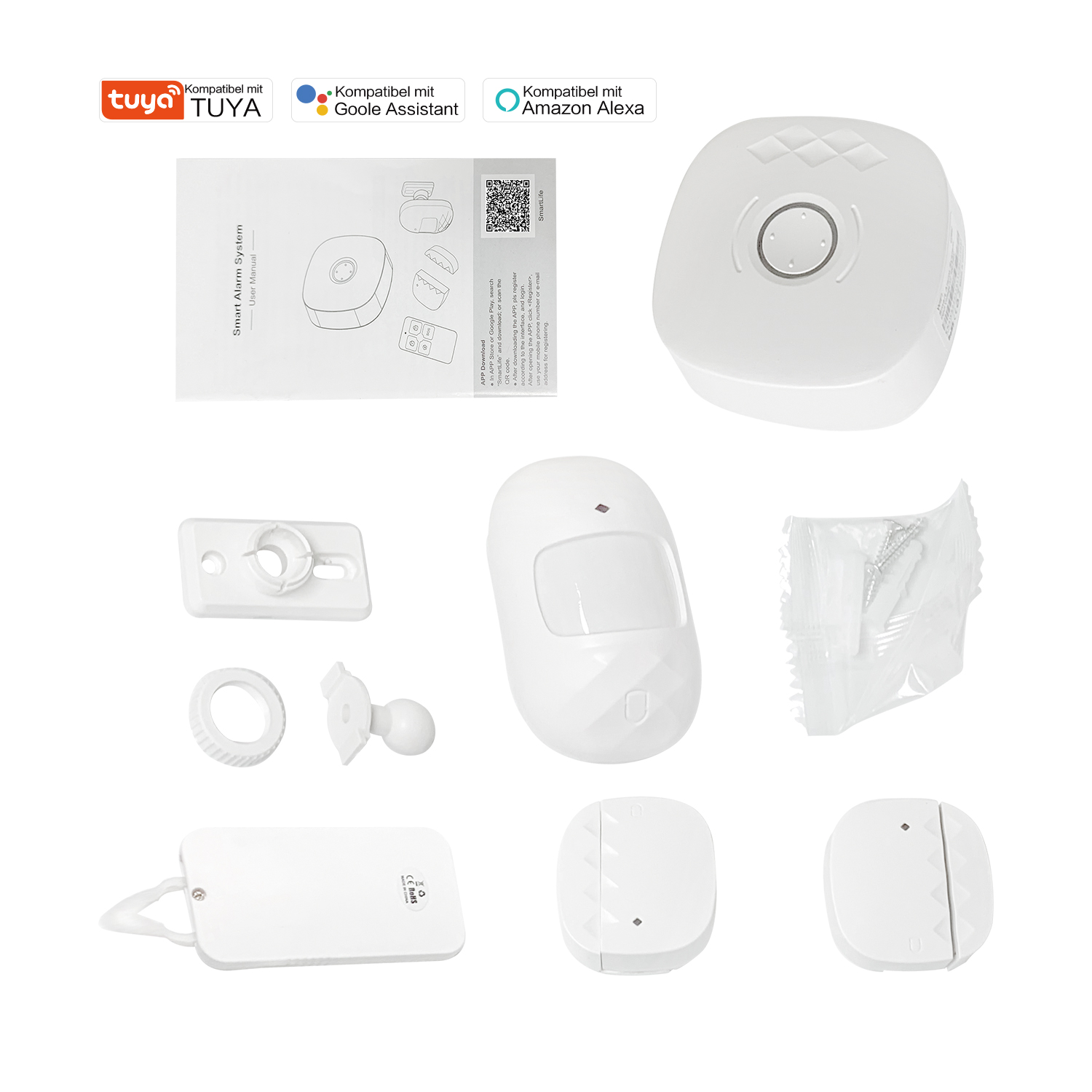

1PCS Smart Alarm Panel +1PCS PIR Detector +1PCS Remote Contorller +2PCS Door Sensor

. WiFi connection, App intelligent control;
. Support Alexa, Google Assistant control;
. Built-in backup battery for all devices;
. Support Max. 100 sensors;
. 10 groups scheduled arm/dsarm support;
. Support Max. 60s Arm/Alarm delay;
. Support administrator and visitor dual identity management;
. History record included: Gateway, Door Sensor, PIR, Remote Controller;
. All accessories support linkage works in your demand scene mode;
. All sensors name editable, easily recognized by push and history records;
. PIR/ door sensors show real status page, also with door open remind;
. PIR/ door sensors monitored to make sure on/off/low battery status;
. OTA support for upgrade if any new firmware or new function launched.

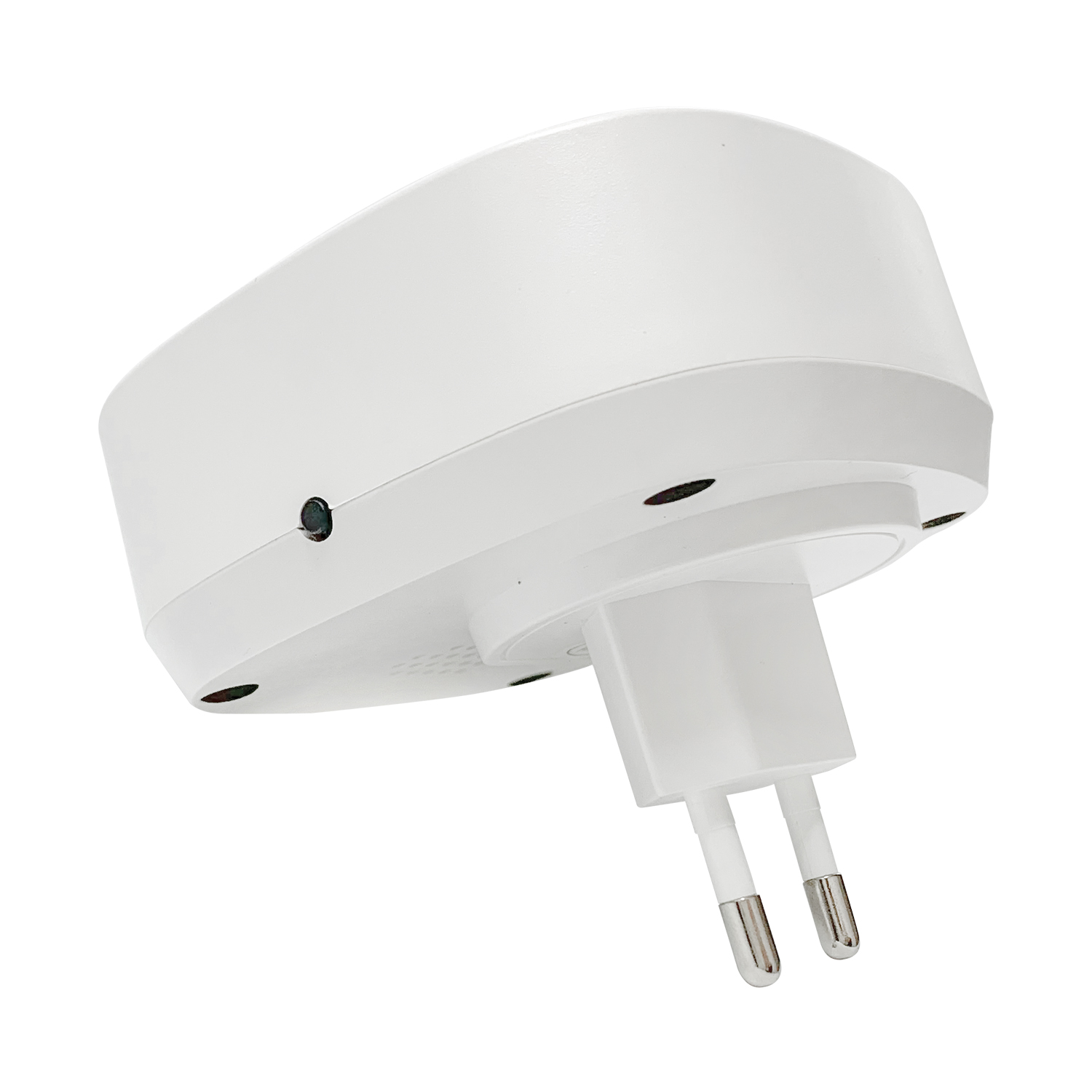

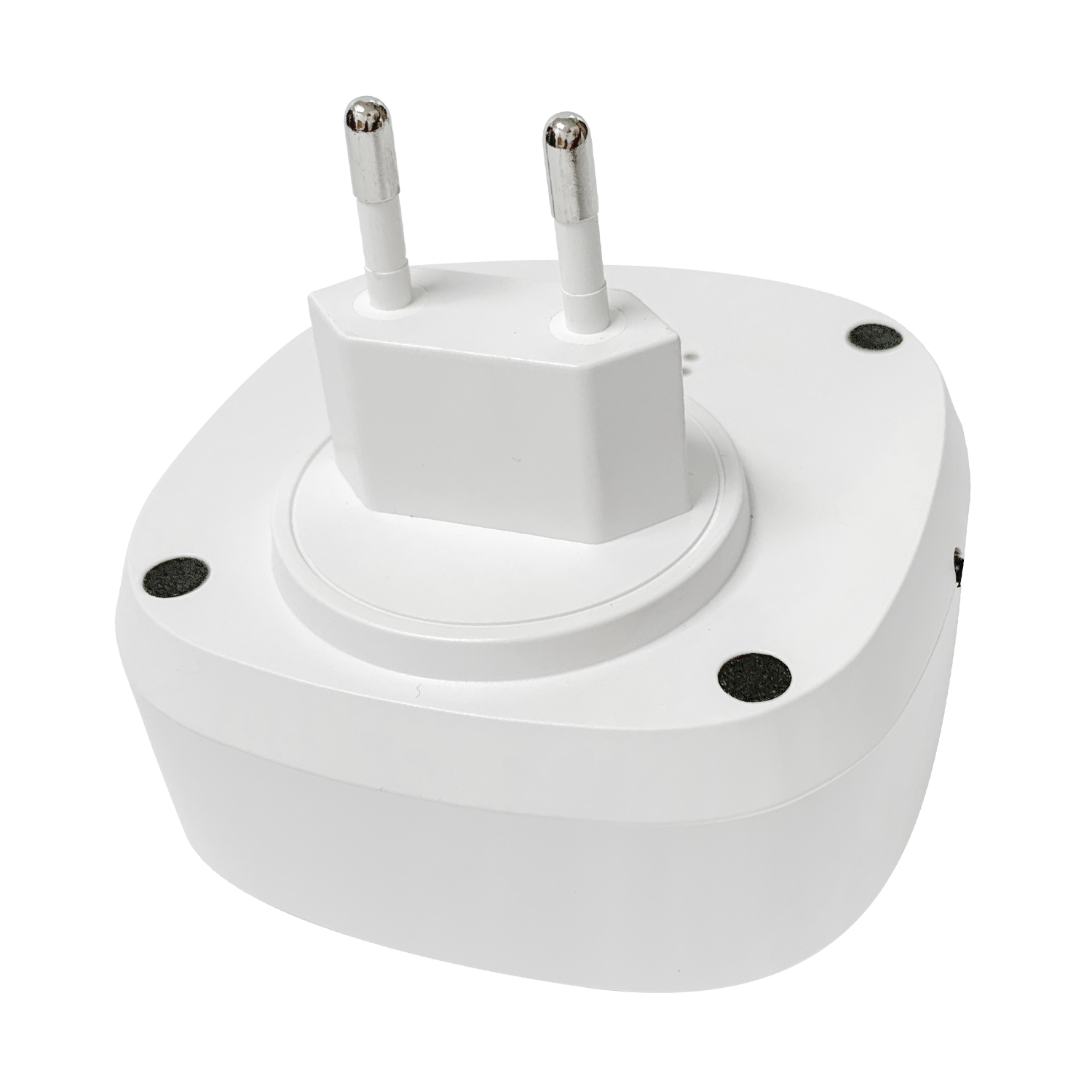

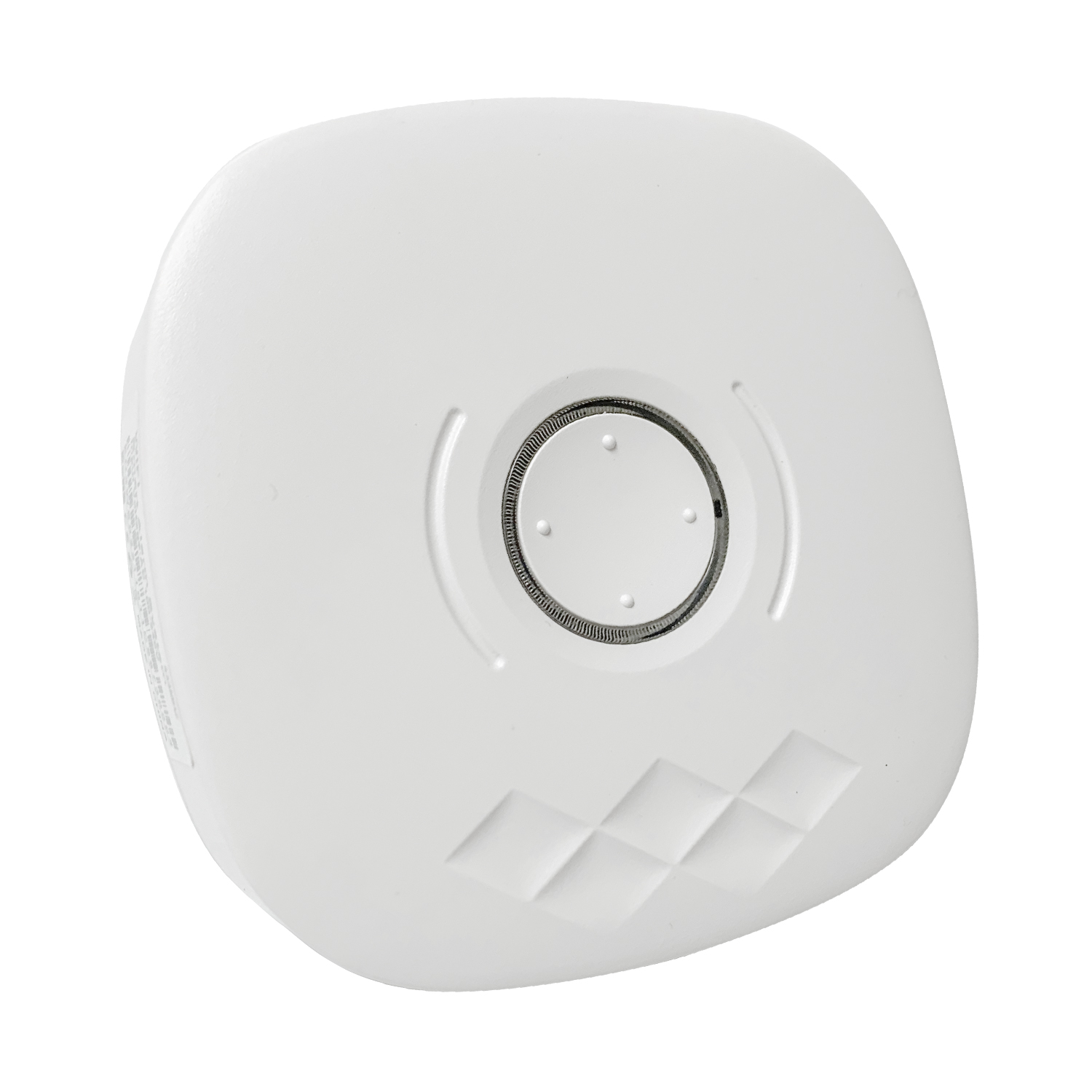

Smart Alarm Panel
Power supply: AC 100~240V
Wireless standard:IEEE 802.11 b/g/n, 433.92MHZ (transmitter and receiver)
RF distance: 70m(for free space)
Modulation mode: AM
Working enlivenment: Temperature -10 C ~ +50 C,Humidity <90% RH
Device dimension: 81.6X81.6X74.2mm

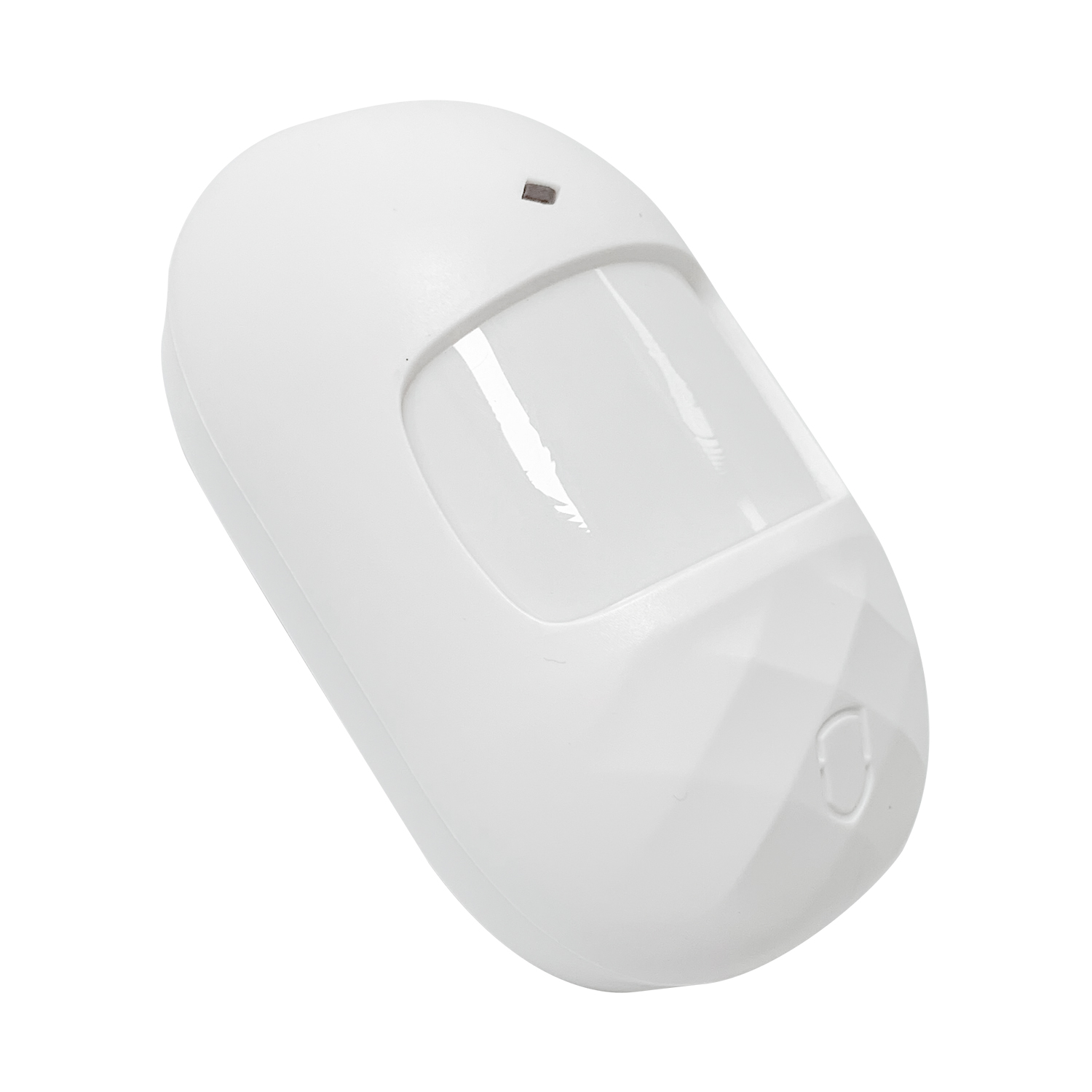

PIR Detector
Power Supply: DC3V (2* AAA)
Standby current: ≤20uA
Alarm current: ≤20mA
Wireless standard: 433Mhz
Wireless distance: 70m(for free space)
Detection angle: 7m/90°
Working enlivenment: Temperature -10 C ~+50 C
Humidity 5%~95% RH
Dimension: 94*54*41mm (excludes the stand)

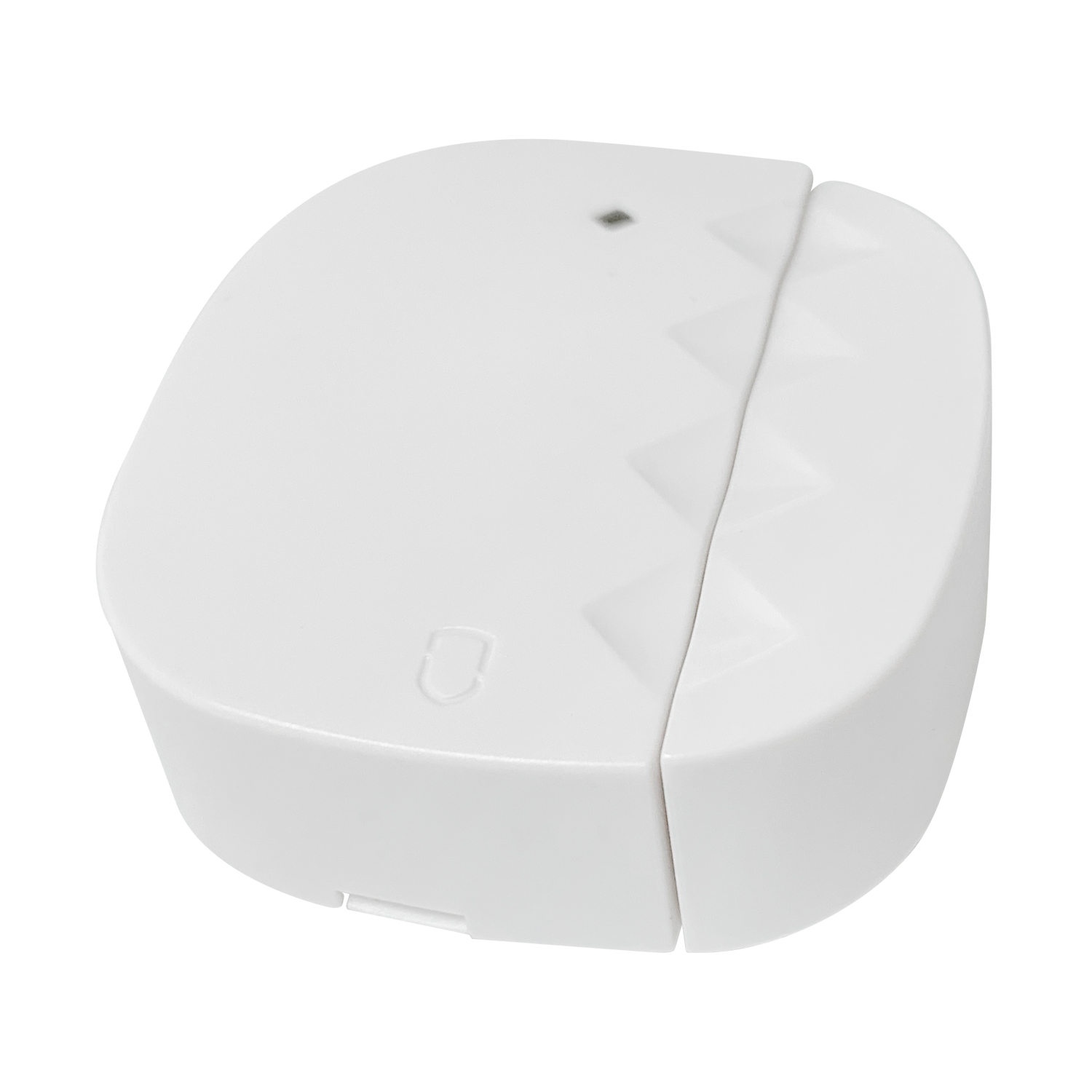

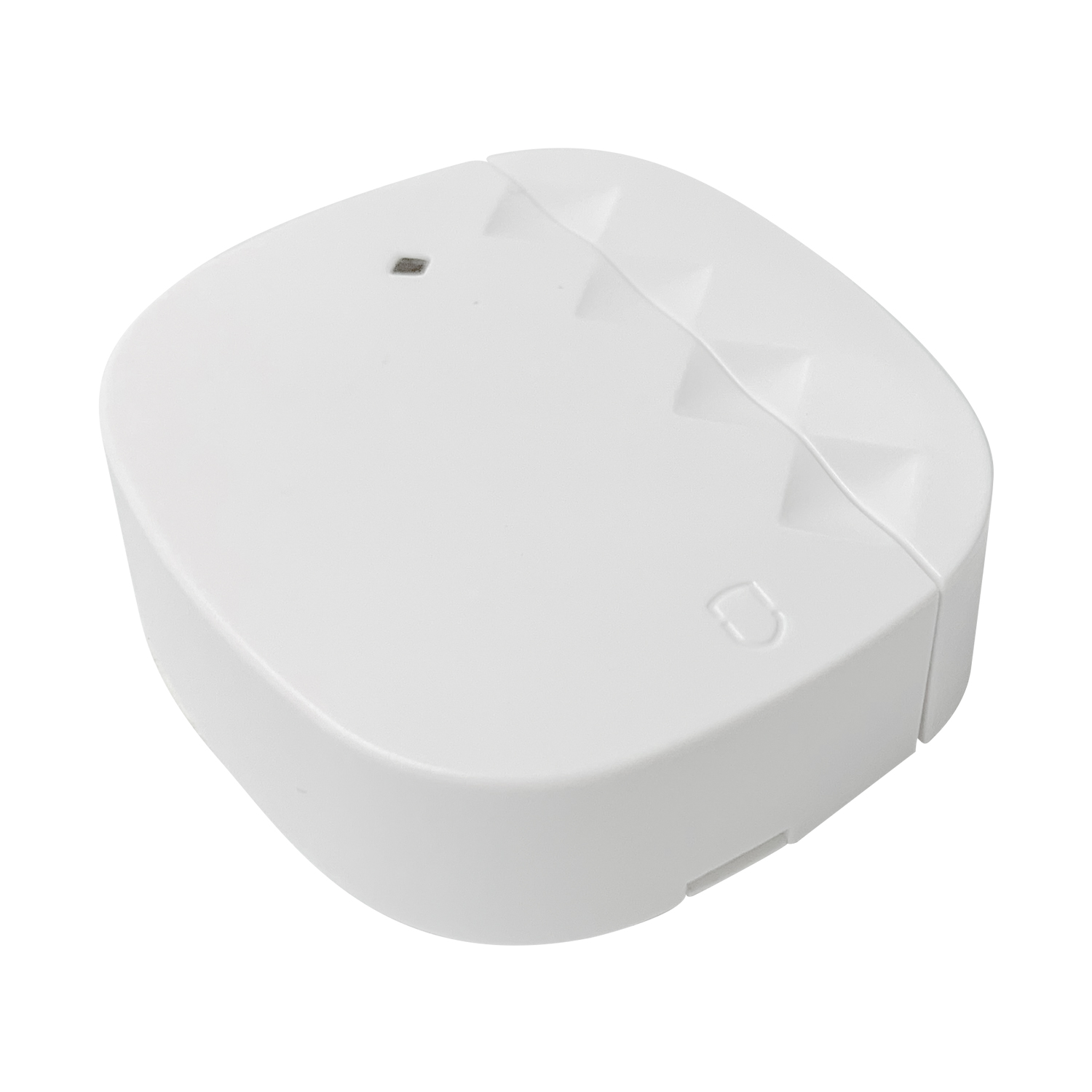

Door Sensor
Power Supply: DC3V (1 * CR2032)
Standby current: ≤3uA
Alarm current: ≤15mA
Wireless standard: 433Mhz
Wireless distance: 70m(for free space)
Working enlivenment: Temperature -10 C~ +55 C,
Humidity≤80% RH
Dimension: 50*35*17mm(transmitter box);
48*13*17mm(magnetic bar)

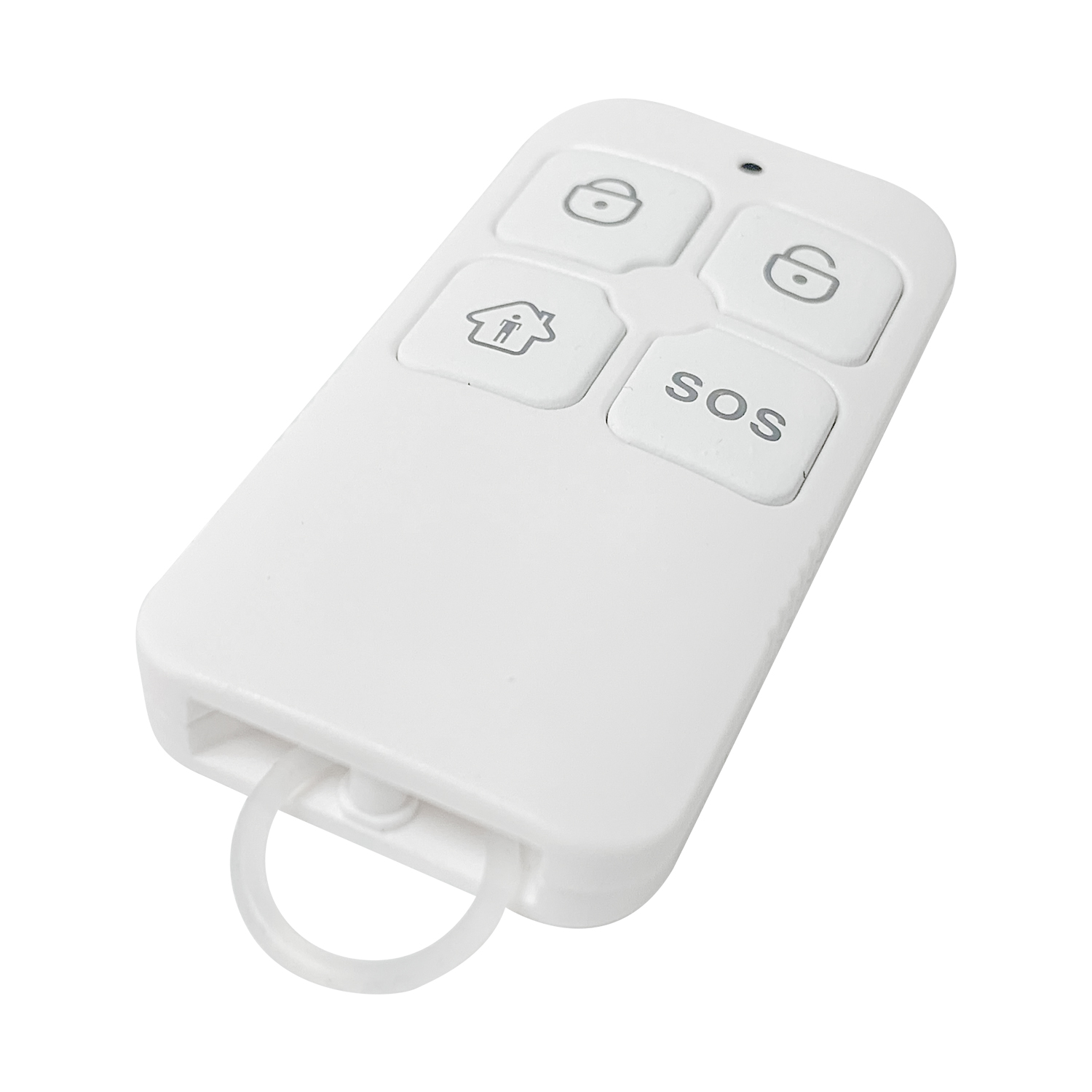

Remote Controller
Power Supply: DC3V (1* CR2032)
Standby current: ≤3uA
Alarm current: ≤15mA
Wireless standard: 433Mhz
Wireless distance: 70m(for free space)
Working enlivenment: Temperature -10 C~+55 C,
Humidity≤80% RH
Dimension: 69*36*11mm
