Smart Home Alarm System H2

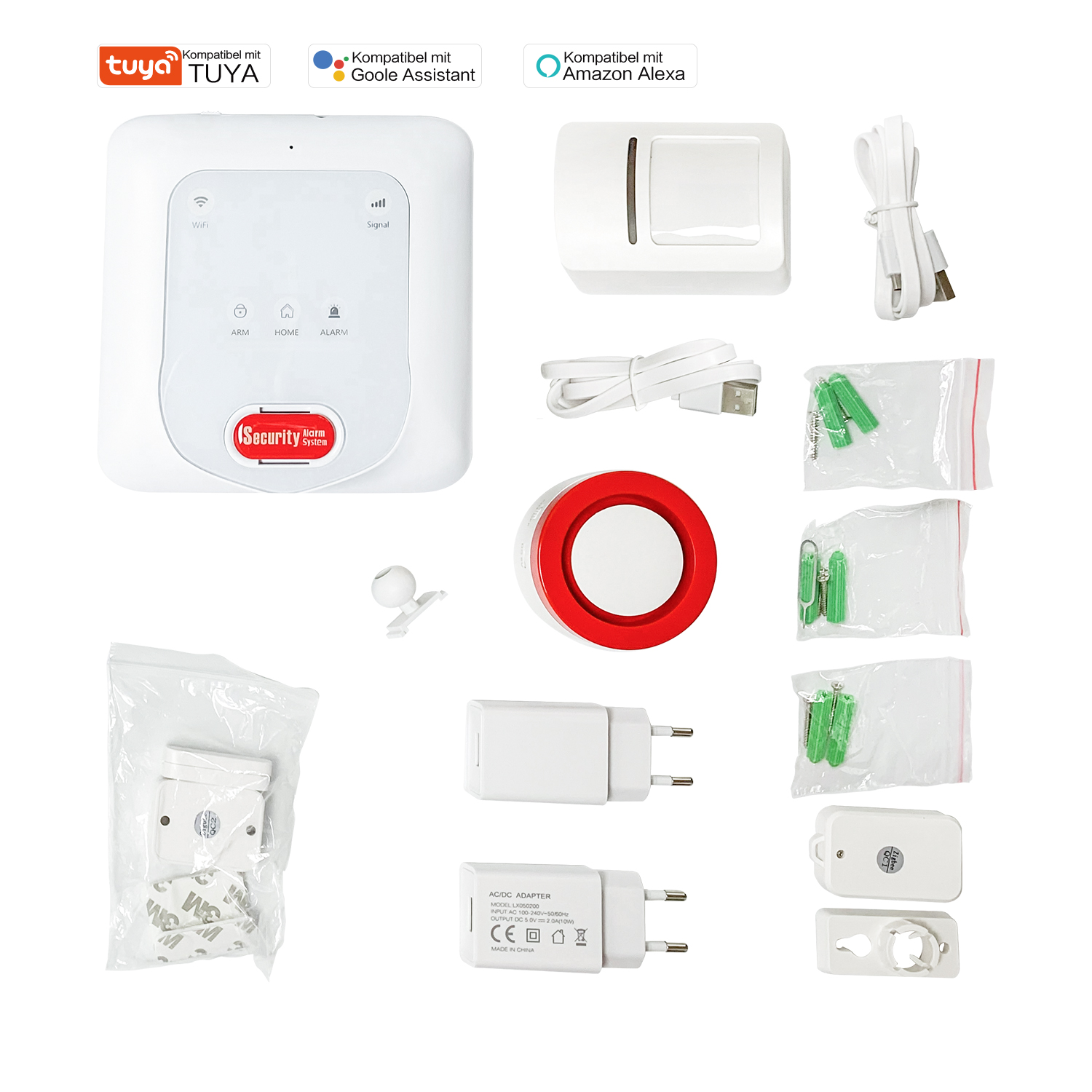

1PCS Smart Alarm Panel +1PCS Door Magnetic Sensor +1PCS PIR Motion Sensor +1PCS Wireless Siren

The smart security alarm kit is based on the intelligent security host, which is paired with PIR detector, door magnetic sensor, and wireless remote controller to build an intelligent security system. It not only can reach anti-theft alarming, but also be linked with smart sockets and devices to get to smart life.
• Connect to WiFi, App control
• reless two-way communication, no gateway
• 50pcs detectors can be added, each detector can be programmed
• Low power-consumption design
• Accessories low power notification
• Volume adjustable
• Silent mode can be set
• Defense zones support Disarm, Arm, Home Arm, 24H Arm, Delay Arm, etc for option
• Built-in GSM module, can still alarm normally even power off in GSM mode
• Built-in back-up battery, have notification when power off or incoming call
• Wi-Fi standard: IEEE 802.1 1 b/g/n
• Wireless Distance: 150m (In open air)

Smart Alarm Panel
Input voltage: DC5V / 2A
Wi-Fi standard: IEEE 802.1 1 b/g/n
Radio Frequency: 2.4GHz (Both transmitting and Receiving)
Wireless Distance: ≤150m (In open air)
Working Temperature: -10 C - +50 C
Password: 888888
Humidity: ≤90%RH
Size: 138*137*21.8mm
Remote Controller
Input voltage: DC3V CR2450
Standby current: <15uA
Alarm current: <10mA
Wireless Frequency: 2.4GHz
Wireless distance: <150m (In open air)
Working Temperature: -10 C - +50 C

Door Magnetic Sensor
Input voltage: DC3V CR2450
Standby current: ≤15uA
Alarm current: <20mA
Wireless Frequency: 2.4GHz
Wireless distance: <150m (In open air)
Working Temperature: -10 C - +50 C
Humidity: <80%RH

PIR Motion Sensor
Input voltage: DC3V CR123A
Standby current: ≤35uA
Alarm current:
≤35mA
Wireless Frequency: 2.4GHZ
Wireless distance: ≤150m (In open air)
Detecting Distance: <8m
Installing Angle: 110°
Working Temperature: -10 C - +50 C
Humidity: ≤80%RH

Wireless Siren
Input voltage: DC5V 2A
Standby current: ≤40mA
Alarm current:≤300mA
Wireless Frequency: 2.4GHz
Wireless distance: ≤150m (In open air)
Working Temperature: -10 C - +50 C
Humidity: ≤80%RH
