Smart Security Alarm System H3

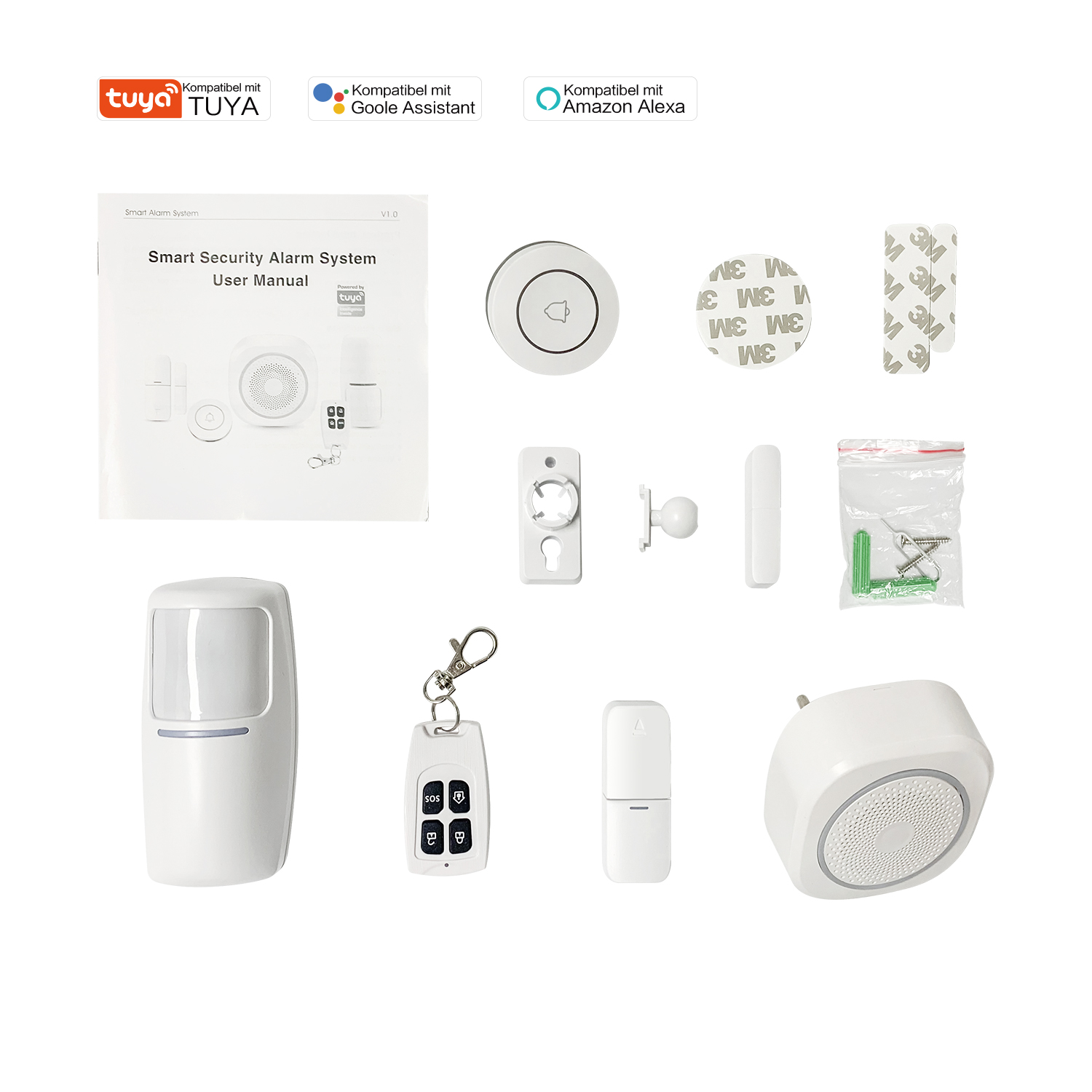

1PCS Smart Alarm Gateway +1PCS Remote controller +1PCSDoor detector +1PCS PIR detector

The smart security alarm is based on the intelligent security host, which is paired with PIR detector, door magnetic sensor, and wireless remote control­ ler to build an intelligent security system. It not only can reach anti-theft alarming, but also be linked with smart sockets and devices to get to smart life.
• Connect to WiFi, App control
• wireless communication, no gateway
• Freely switchable national standard / European plug
• The alarm is not triggered, and the indicator light shows the effect of breathing light
• SOpcs detectors can be added, each detector can be programmed
• Low power-consumption design
• Accessories low power notification
• Intelligent sc ene recognition,unclosed reminder
• Volume is adjustable
• Built-in doorbell DingDong, with 17 bands of eight chord music to switch
• Built-in alarm tone is optional, with 32 bands of eight chord music to switch
• Defense zones support Disarm, Arm, Home Arm, 24H Arm, Delay Arm, etc for option
• Built-in back-up battery, have notification when power off or incoming call

Smart Alarm Gateway
Input Voltage: AC 85V-250V
Built-in lithium battery: 250mah 3.7V
Battery StandbyTime: 4 hours
WIF| Standard: IEEE 802.11 b/g/n
Wireless Receiving frequency: 433M +75KHZ 330K EV1527
Wireless transmitting frequency: 315M +75KHZ 330K EV1527
Wireless distance: <80M (in open space)
Working Temperature: -10°C - +50°C
Humidity: <90%RH
Size: 70*70*40mm

Remote controller
Input voltage: 3V CR2032
Standby current: <10uA
Alarm current: <15mA
Wireless frequency: 433M +75KHZ 330K EV1527
Wireless distance: <80M (in open space)
Working temperature: -10°C~+50°C
Humidity: <80% RH

Door detector
Input voltage: 12V 23A
Standby current: <10uA
Alarm current: <45mA
Wireless frequency: 433M +75KHZ 330K EV1527
Wireless distance: <80M (in open space)
Working temperature: -10 C~+50 C
Humidity: <80% RH

PIR detector
Input voltage: 9V 6F22
Standby current: <35uA
Alarm current: <45mA
Wireless frequency: 433M+75KHZ 330K EV1527
Wireless distance: <80M (in open space)
Detection distance: 8M/110°
Working temperature: -10°C~+50°C
Humidity: <80% RH
