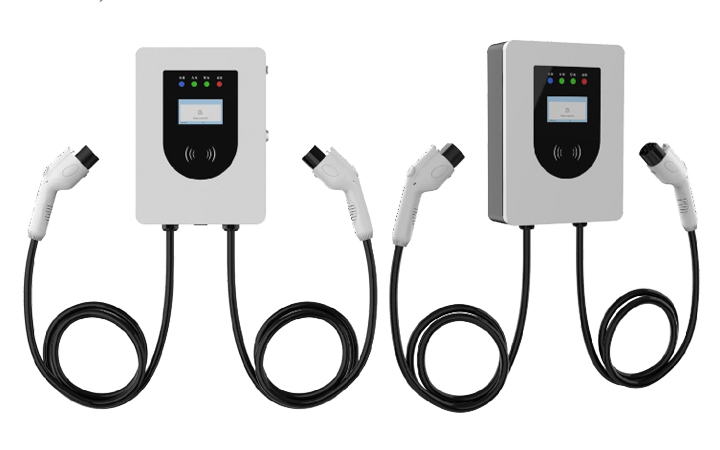

Home Series Ev Wallbox 14kW/22kW/44kW AC charger
Optional networking mode: support wifi/Ethmet/3G/4G/Bluetooth/OCPP 1.6 json control device
The output current has four gears for more flexible adjustment
Various protection functions ensure charging safety in rainy and snowy weather
Friendly interface and comfo rtable LCD screen
High compatibility, applicable to almost all models on the market
Energy-saving and power-saving，standby power consumption is as low as 3w, and cost is reduced
Optional installation mode:wall一mounted/pole一mounted,more convenient
Various charging methods:plug&play/RFID card/APP
A4 paper size, saving space
Datasheet | Model No. | EACB014B-Y6 | EACB022B-Y6 | EACB044B-Y6 |
Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
Voltage Range | 230VAC | 400VAC | 400VAC | |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
Current | 32A*2 | 16A*2 | 32A*2 | |
Output | Voltage Range | 230VAC | 400VAC | 400VAC |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |
Current | 32A*2 | 16A*2 | 32A*2 | |
Rated Power | 14kW | 22kW | 44kW | |
User Interface | Charge Connector | Type 2 cable | ||
Cable Length | 5M | |||
Charge Connector Compatibility | EN 62196-1:2014,EN 62196-2:2017 | |||
Enclosure | Galvanized steel | |||
Front Panel | Temper glass | |||
LED Indicator | Green/Yellow /Red | |||
LCD Display | 4.3″ color touch screen | |||
RFID Reader | Mifare ISO/IEC 14443 A | |||
Start Mode | Plug&Play/RFID card/App | |||
Interface Language | English/Chinese | |||
Communication | WIFI | Optional | ||
Ethernet | Optional | |||
3G/4G | Optional | |||
Bluetooth | Optional | |||
OCPP | OCPP 1.6 Json | |||
Safety | RCD | 30mA Type A + 6mA DC | ||
Ingress Protection | IP54 | |||
Impact Protection | IK10 | |||
Certification | CE | |||
Cooling | Natural cooling | |||
Certificate Compliance | CE/EN/IEC 61851-1:2017,EN/IEC 61851-21-2:2018 | |||
Special Protection | Over current protection,Residual current protection,Ground protection,Surge protection, Over/Under voltage protection,Over/Under frequency protection,Over/Under temperature protection | |||
Warranty | 2 years | |||
Environment | Installation | Wall-mount/Pole-mount | ||
Work Temperature | -25℃ to +55℃ | |||
Work Humidity | 5%~95% | |||
Work Altitude | <2000m | |||
Package | Product Dimensions | (380*280*106)mm | ||
Package Dimensions | 512*330*280(L*W*H)mm | |||
Net Weight | 7.5Kg | 7.5Kg | 8.5Kg | |
Gross Weight | 8.5Kg | 8.5Kg | 9.5Kg | |
