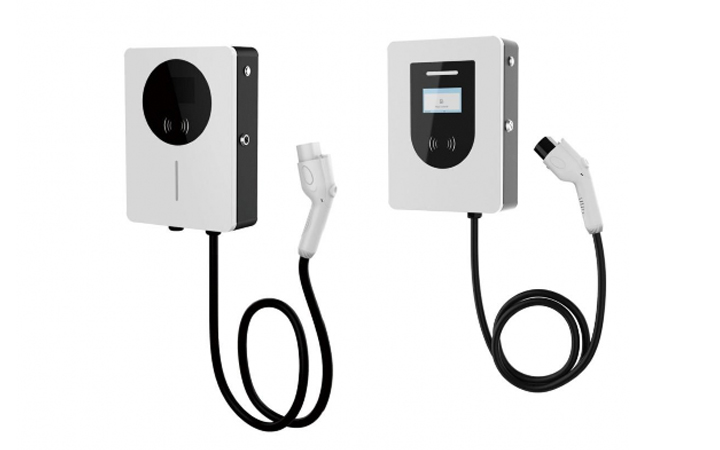

Home Series Ev Wallbox 7kW/11 kW AC charger White

Optional networking mode: support wifi/Ethmet/3G/4G/Bluetooth/OCPP 1.6 json control device

The output current has four gears for more flexible adjustment

Various protection functions ensure charging safety in rainy and snowy weather

Friendly interface and comfo rtable LCD screen

High compatibility, applicable to almost all models on the market

Energy-saving and power-saving，standby power consumption is as low as 3w, and cost is reduced

Optional installation mode:wall一mounted/pole一mounted,more convenient

Various charging methods:plug&play/RFID card/APP

A4 paper size, saving space

Datasheet	Model No.	ACB 007 D- Y 5	ACB 011 D- Y 5
Input	Power Supply	1 P+N+PE
	Voltage Range	208 - 240 VAC
	Frequency	60 Hz
	Current	32 A	48 A
Output	Voltage Range	208 - 240 VAC
	Frequency	60 Hz
	Current	32 A	48 A
	Rated Power	7 k W	11 k W
User Interface	Charge Connector	Type 1 cable
	Cable Length	5 M
	Charge Connector Compatibility	SAE 1772 - 2017
	Enclosure	Galvanized steel
	Front Panel	Temper glass
	LED Indicator	Green/Yellow /Red
	LCD Display	4.3″ color touch screen
	RFID Reader	Mifare ISO/IEC 14443 A
	Start Mode	Plug& Play/ RFID card/ App
	Interface Language	English/Chinese
Communication	WIFI	Optional 2 . 4 GHz Wifi
	Ethernet	Optional LAN 1 * RJ- 45
	3 G/ 4 G	Optional
	Bluetooth	Optional
	OCPP	OCPP 1.6 Json
Safety	RCD	CCID 20
	Ingress Protection	IP54
	Impact Protection	IK10
	Certification	UL/ ETL/ CSA
	Cooling	Natural cooling
	Certificate Compliance	SAE 1772 UL 2594 +UL 2331 +UL 1998 +UL 991
	Special Protection	Over current protection,Residual current protection,Ground protection,Surge protection,Over/Under voltage protection,Over/Under frequency protection,Over/Under temperature protection,Short Circuit protection
	Warranty	2 years
Environment	Installation	Wall- mount/ Pole- mount
	Work Temperature	- 25 ℃ to + 5 5 ℃
	Work Humidity	5 % ~ 95 %
	Work Altitude	< 2000 m
Package	Product Dimensions	( 380 * 280 * 106 ) mm
	Package Dimensions	512 * 330 * 280 ( L* W* H) mm
	Net Weight	Kg	Kg
	Gross Weight	Kg	Kg
