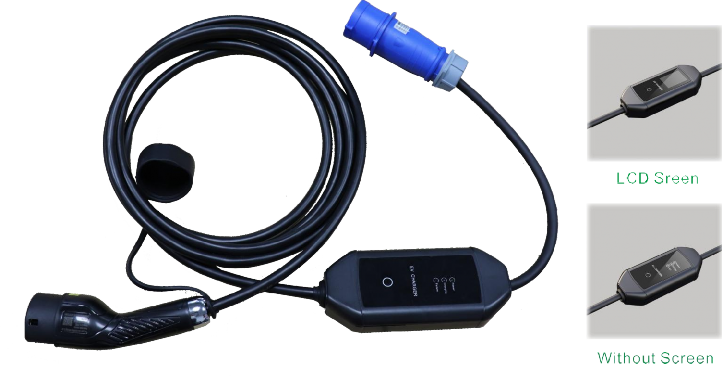

Portable Charger 3.5kW/7kW portable AC charger
 |
|
| Schuko Plug | |
| |
| NEMA6-20P Plug | |
| |
| Blue cee |
Small size, convenient to carry, and can be charged anytime andanywhere
lThe output current has fourgears for more flexible adjustment
High compatibility, applicable to almost all models on the market
lVarious protec on func ons ensure charging safety in rainy and snowy weather
Friendly interface and comfo rtable LCD screen
Datasheet | Model No. | EACX0035A-Y1 | EACB007A-Y1 |
Input | Power Supply | 1P+N+PE | |
Voltage Range | 230VAC | ||
Frequency | 50/60Hz | ||
Current | 0-16A | 0-32A | |
Output | Voltage Range | 230VAC | |
Frequency | 50/60Hz | ||
Current | 8A-10A-13A-16A | 8A-16A-20A-32A | |
User Interface | Charge Connector | Type 2 cable | |
Cable Length | 5M | ||
Charge Connector Compatibility | EN 62196-1:2014,EN 62196-2:2017 | ||
Enclosure | Plastic PC | ||
LED Indicator | Green/Blue/Red | none | |
LCD Display | 2.8″ color touch screen | none | |
RFID Reader | Mifare ISO/IEC 14443 A | ||
Start Mode | Plug&Play | ||
Interface Language | English/Chinese | ||
Safety | Ingress Protection | IP55 | |
Impact Protection | IK10 | ||
Certification | CE | ||
Cooling | Natural cooling | ||
Certificate Compliance | CE/EN/IEC 61851-1:2017,EN/IEC 61851-21-2:2018 | ||
Special Protection | Over current protection,Residual current protection,Ground protection,Surge protection, Over/Under voltage protection,Over/Under frequency protection,Over/Under temperature protection | ||
Warranty | 2 years | ||
Environment | Work Temperature | -25℃ to +55℃ | |
Work Humidity | 5%~95% | ||
Work Altitude | <2000m | ||
Package | Product Dimensions | (L*W*H)mm | |
Package Dimensions | (L*W*H)mm | ||
Net Weight | 5Kg | 6Kg | |
Gross Weight | 6Kg | 7Kg | |
