WiFi+GMS Smart Alarm System WT2BX

The detailed information

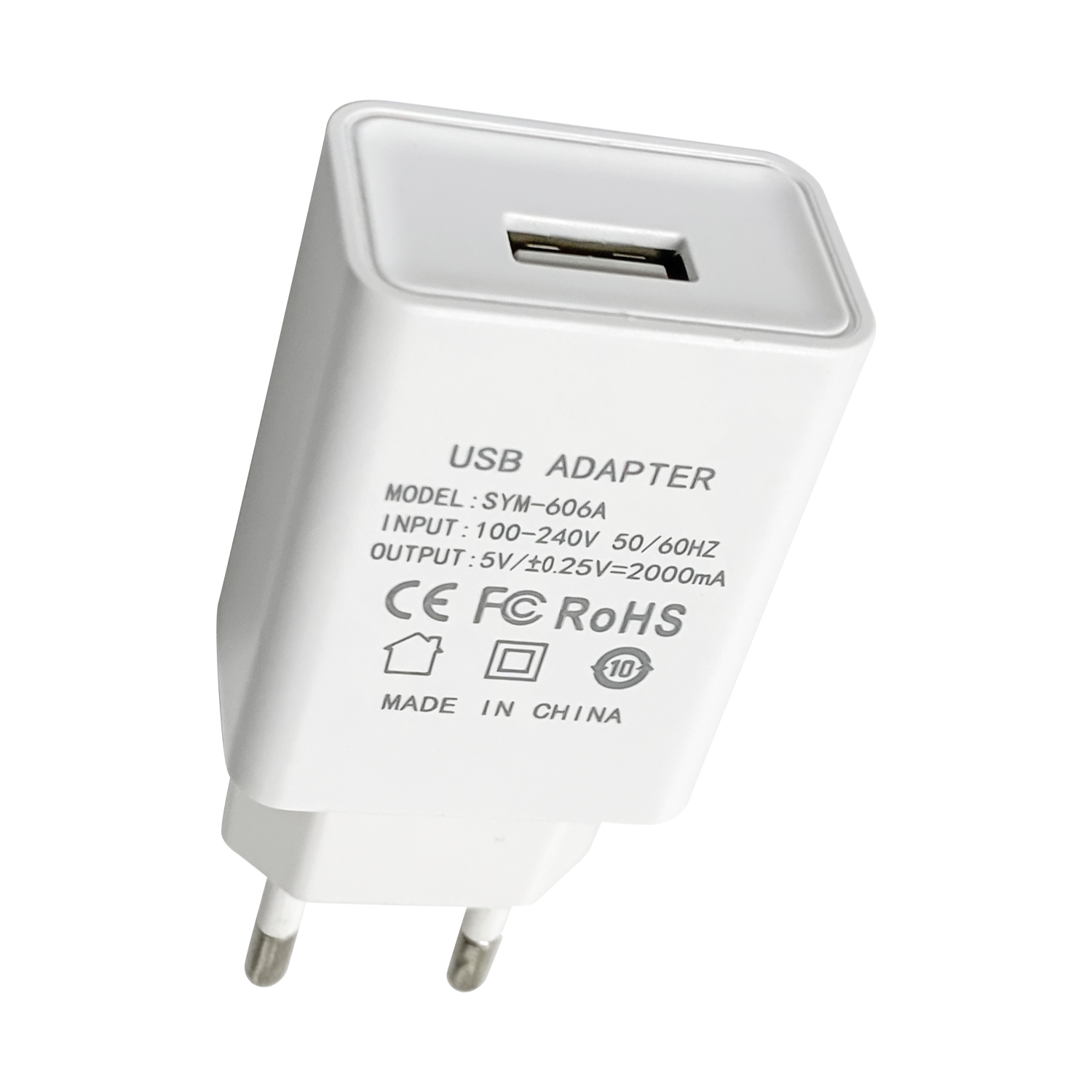

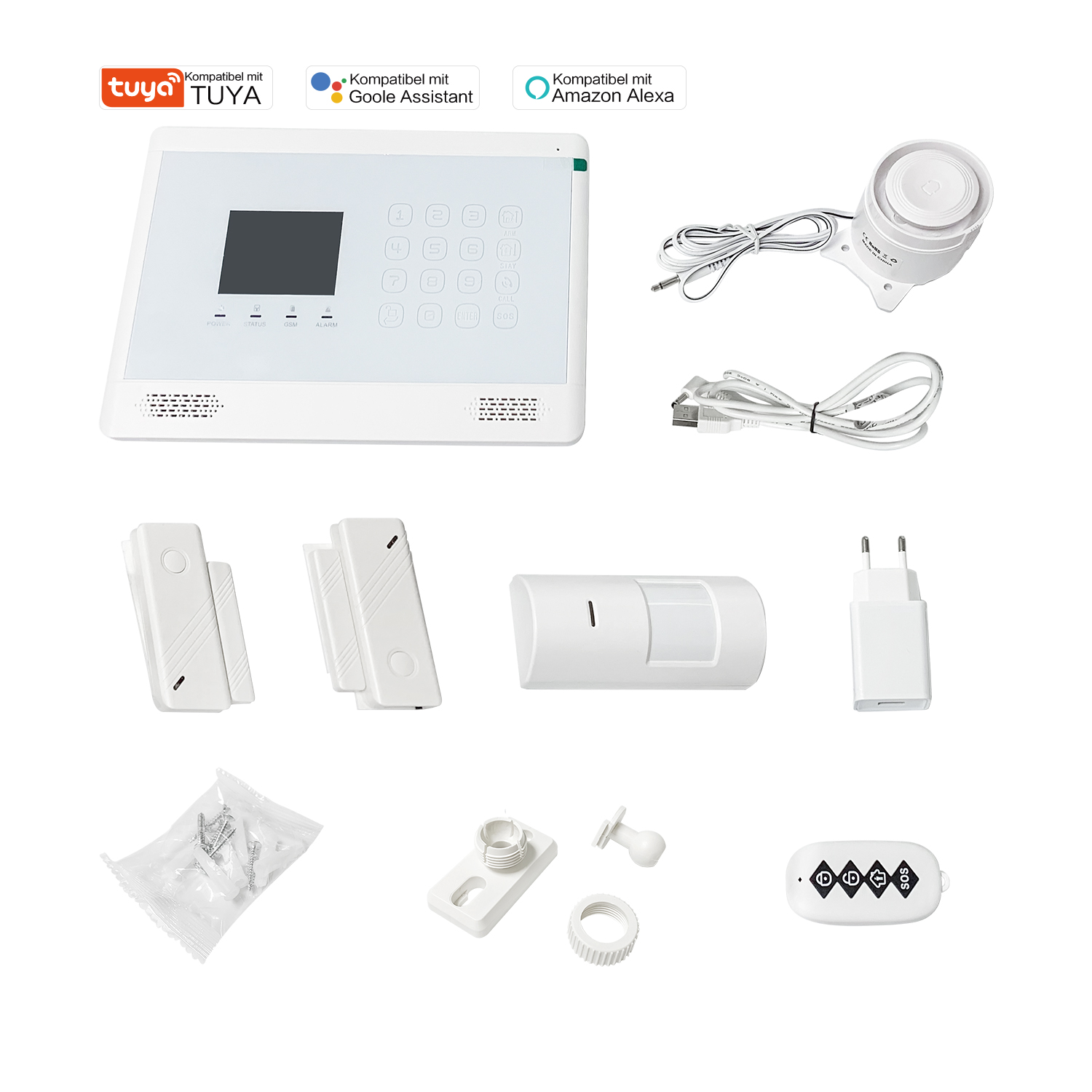

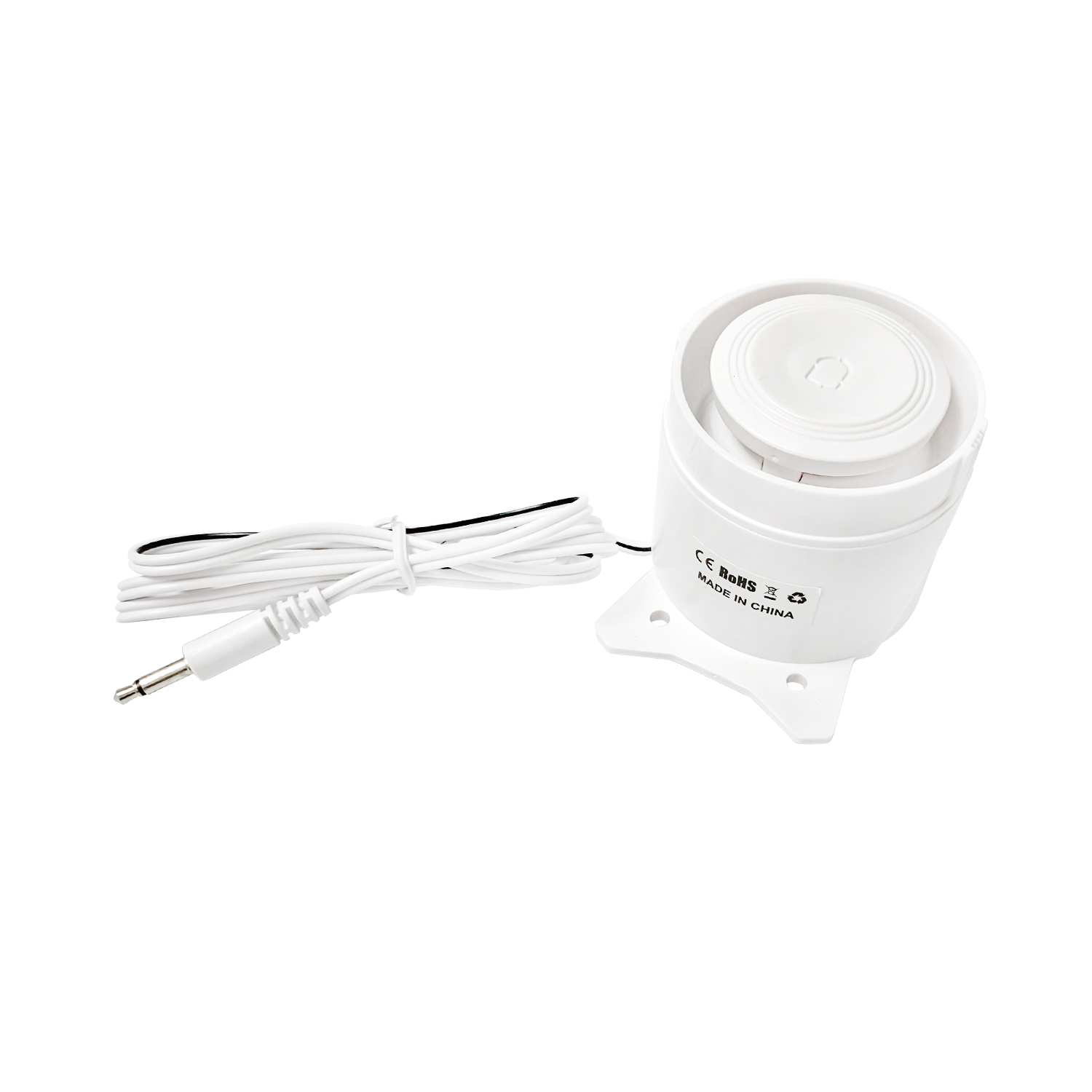

1PCS Host +1PCS PIR Detector +1PCS Door Sensors +1PCS Wired Mini Siren +1PCS Remote Control +1PCS Adapter +1PCS User Manual

●WiFi+GSM dual network connection for double guarantee;

●2.4 inch TFT LCD display;

●Support 10 remote controllers;

●Support 6 groups of alarm phone numbers and 6 groups of alarm SMS numbers;

●Support 2 wired defense zones;

●Up to 100 wireless defense zones, support independently custom zone attributes;

●24-hour defense zone, ordinary defense zone, home defense zone and delay defense zone are selectable;

●Support device sharing;

●Smart doorbell, APP notifications;

●Built-in RF wireless transmission module to expand wireless sirens;

●TUYA WiFi solution, APP management, allows to be linked to other smart

●Built-in backup battery to prevent sudden power outage;

●Classified management of operation logs and alarm records;

●APP alarm notifications, accurately locate the alarm defense zone;

●Record log of door magnetic switch, history recording, APP management; products of TUYA ecosystem;

●Multi-account management, sub-permission management (a total of 16 accounts, 1 administrator, 15 visitors, These accounts only can be set on the alarm host, APP can not be set).

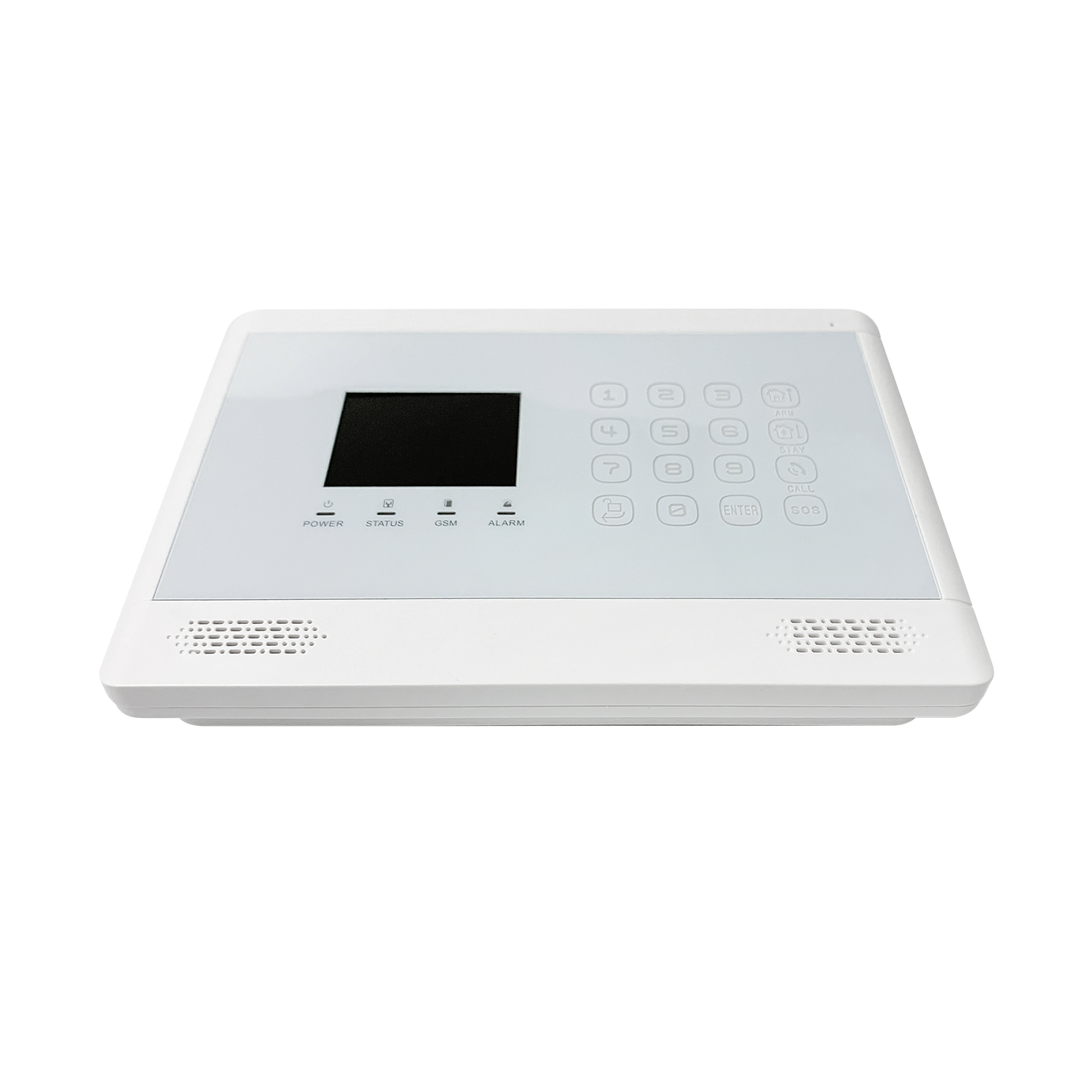

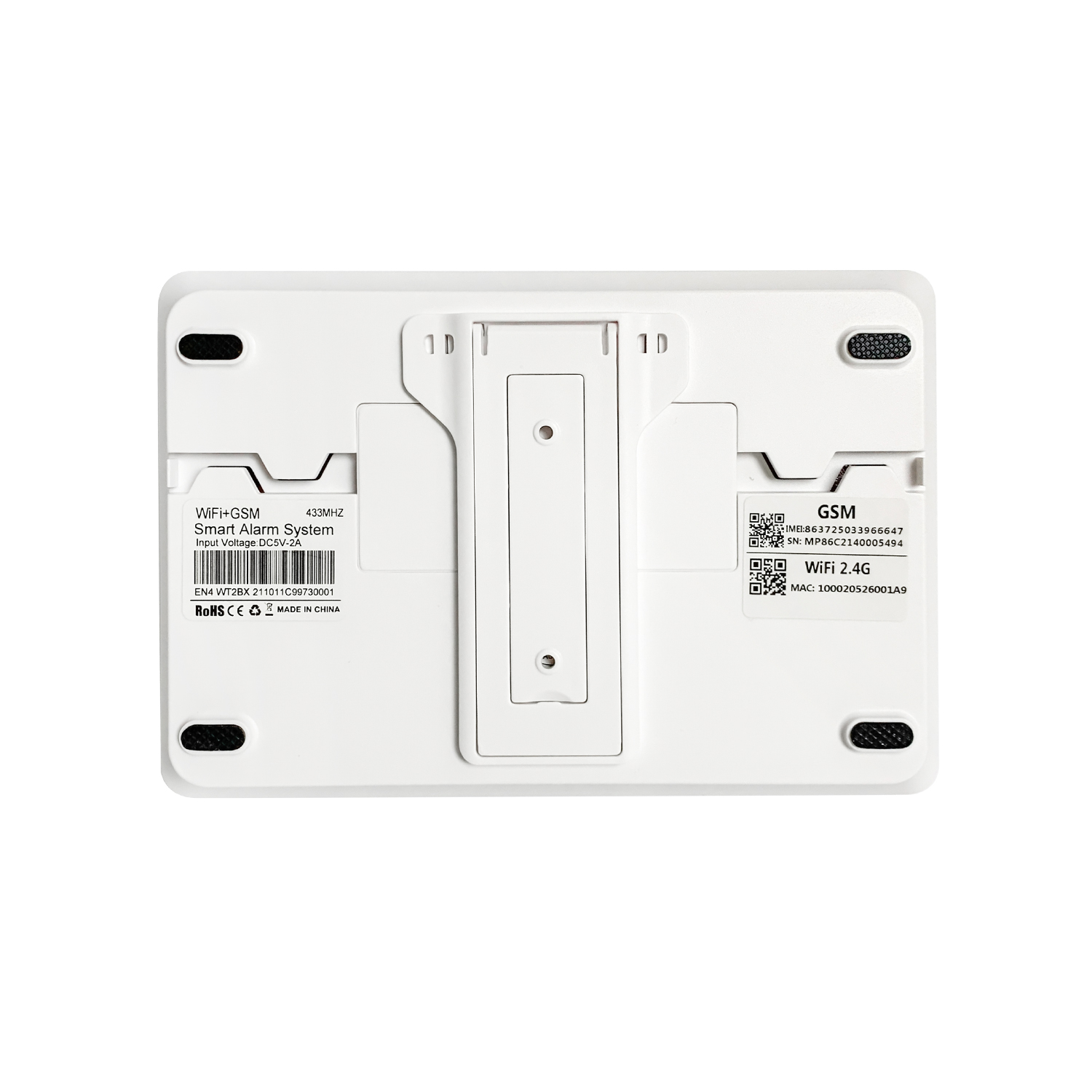

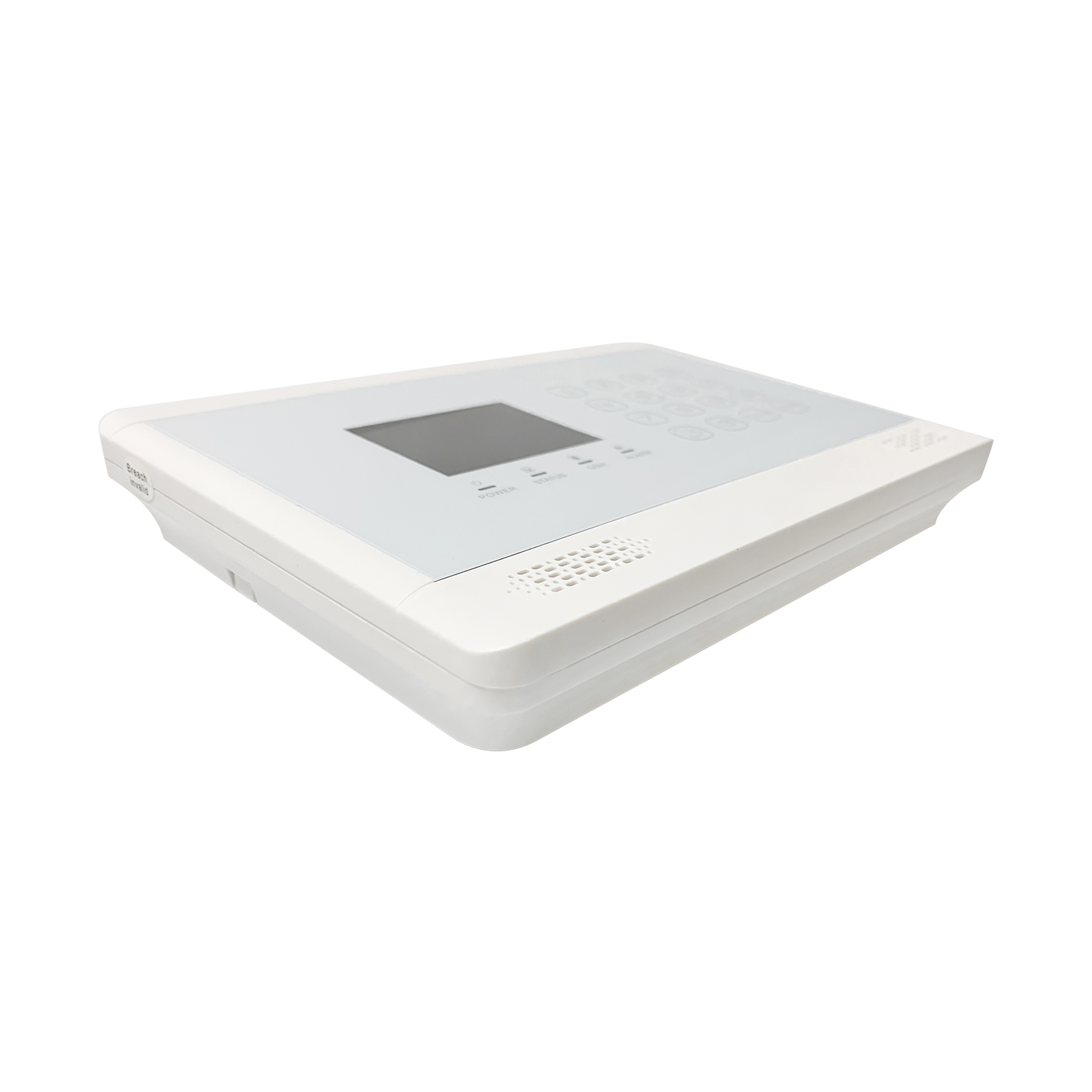

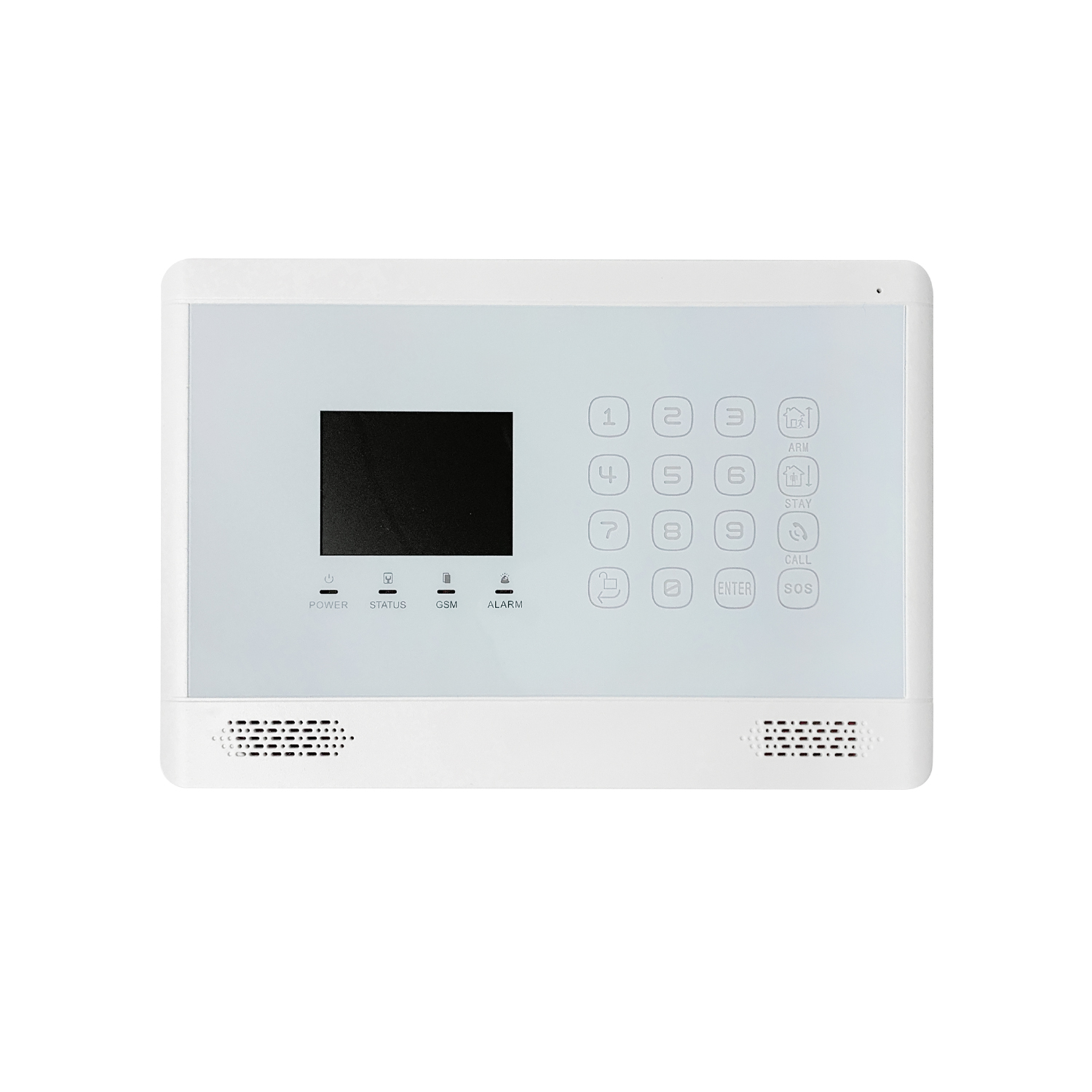

Smart Security Alarm Host

Power supply: DC 5V

Wireless standard: IEEE 802.11 b/a/n, 433.92MHz (transmit and receive)

RF distance: 229.7ft/70m (open air)

Modulation system: AM

Receive sensitivity: -110dBm

Static power consumption: ≤150mA

Alarm power consumption: ≤400mA

Working environment: temperature -10°C ~ + 50°C, humidity < 90% RH

Product size: 200*136*31mm

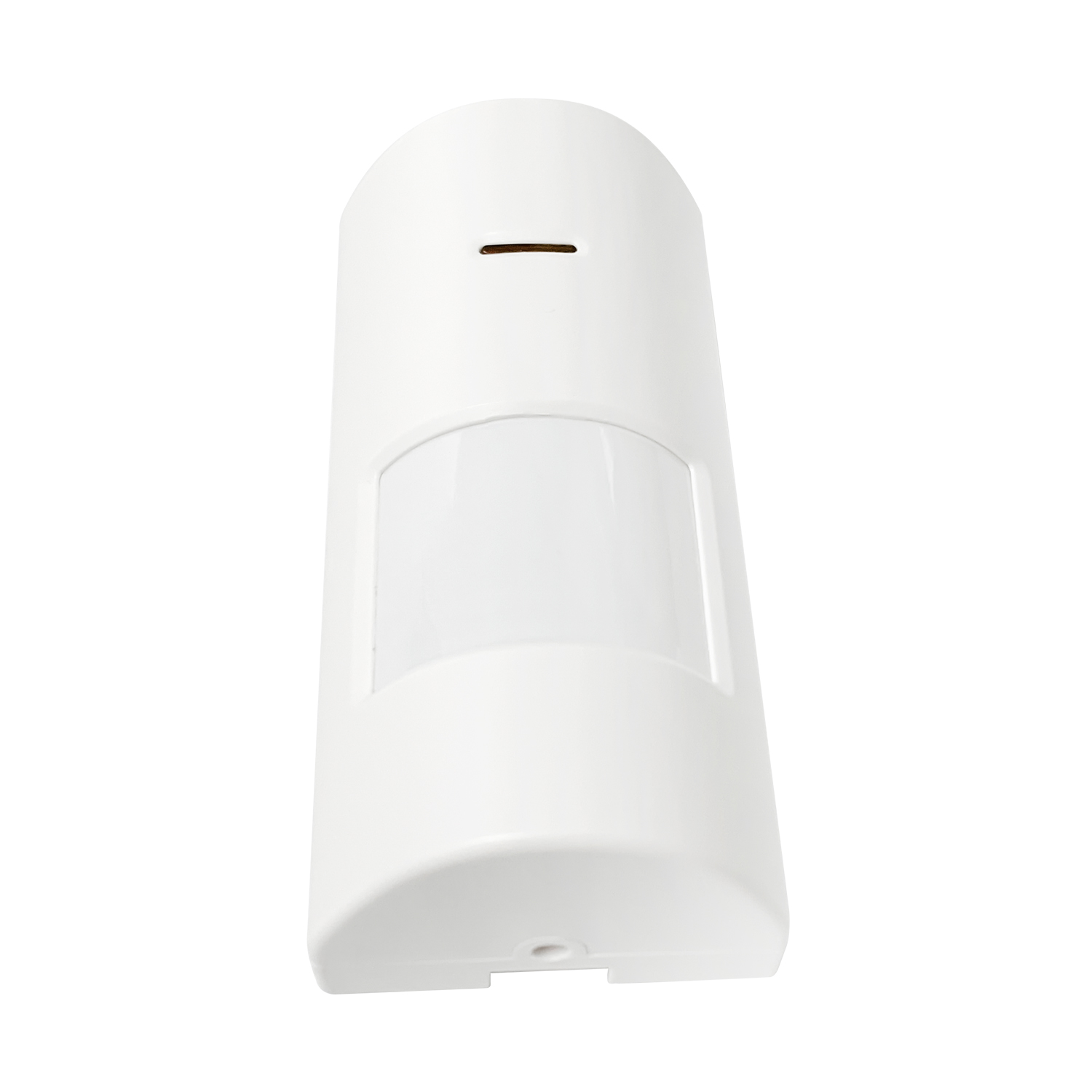

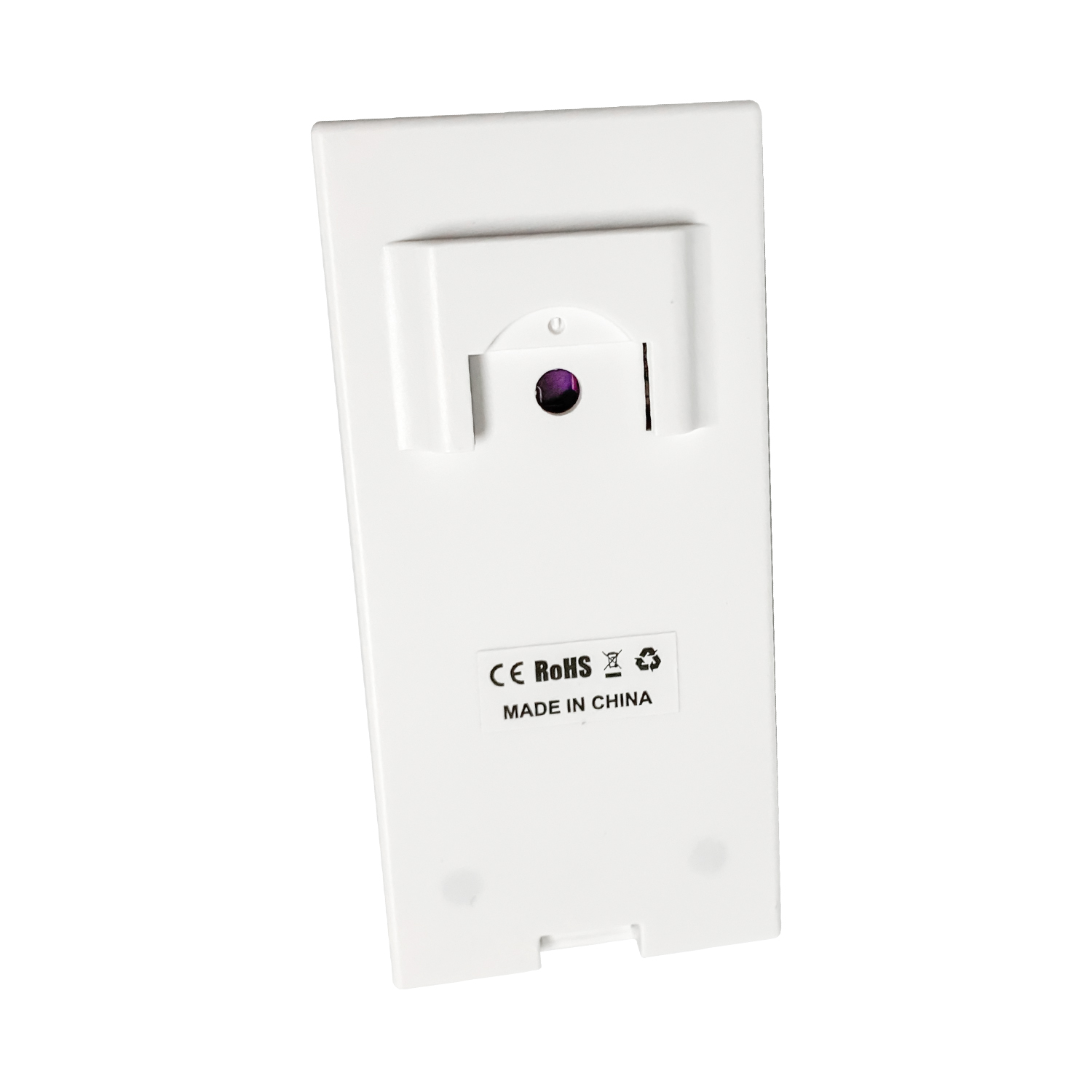

PIR Detector

Battery model: DC 6V, 4 AAA batteries

Static current: ≤60uA

Alarm current: ≤20mA

Wireless standard: ASK433.92MHZ

Wireless distance: ≥80m(open air)

Detection angle: 110° horizontal, 60° vertical

Working environment: +5°C ~ + 45°C

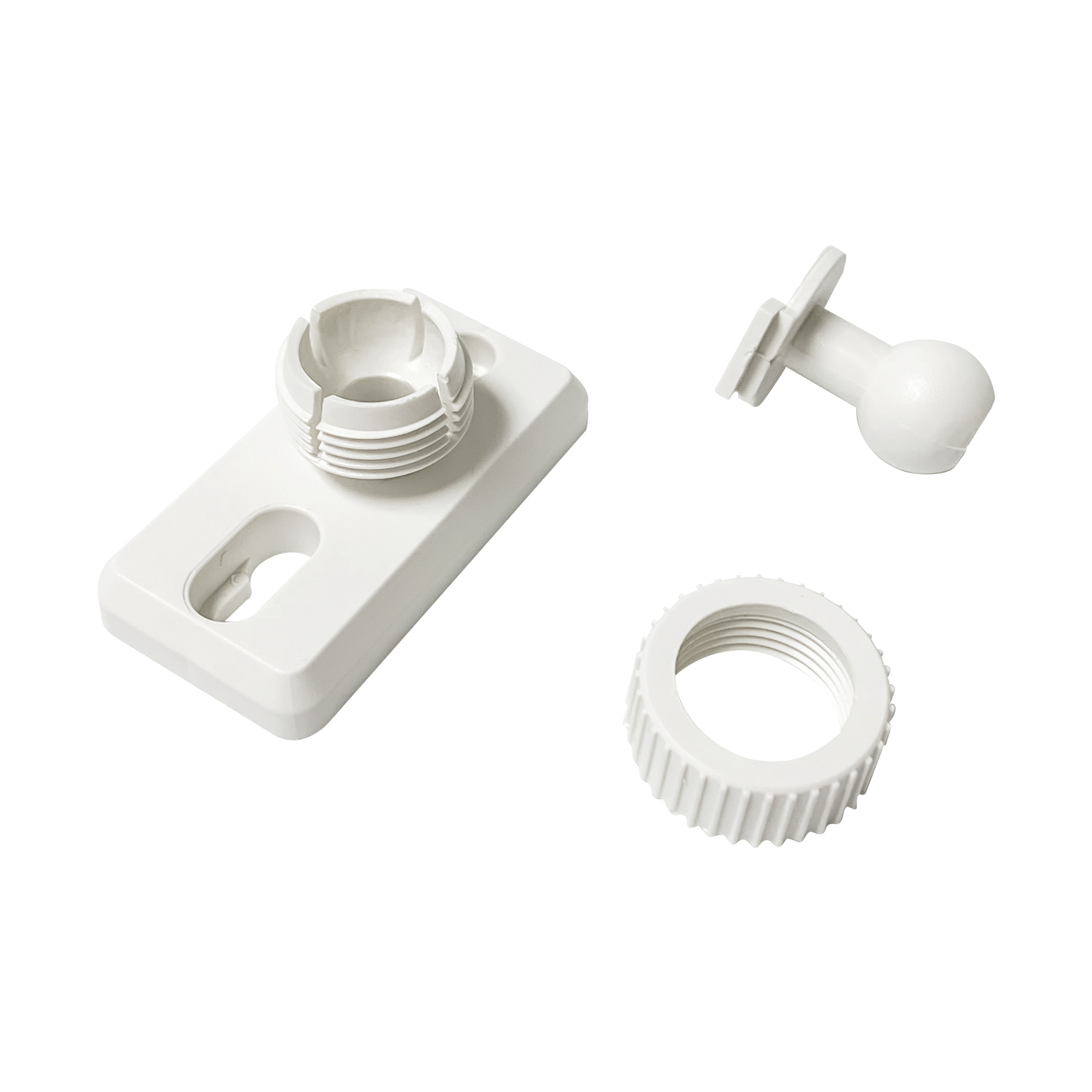

Product size: 116mm*60mm*38mm (without mounting bracket)

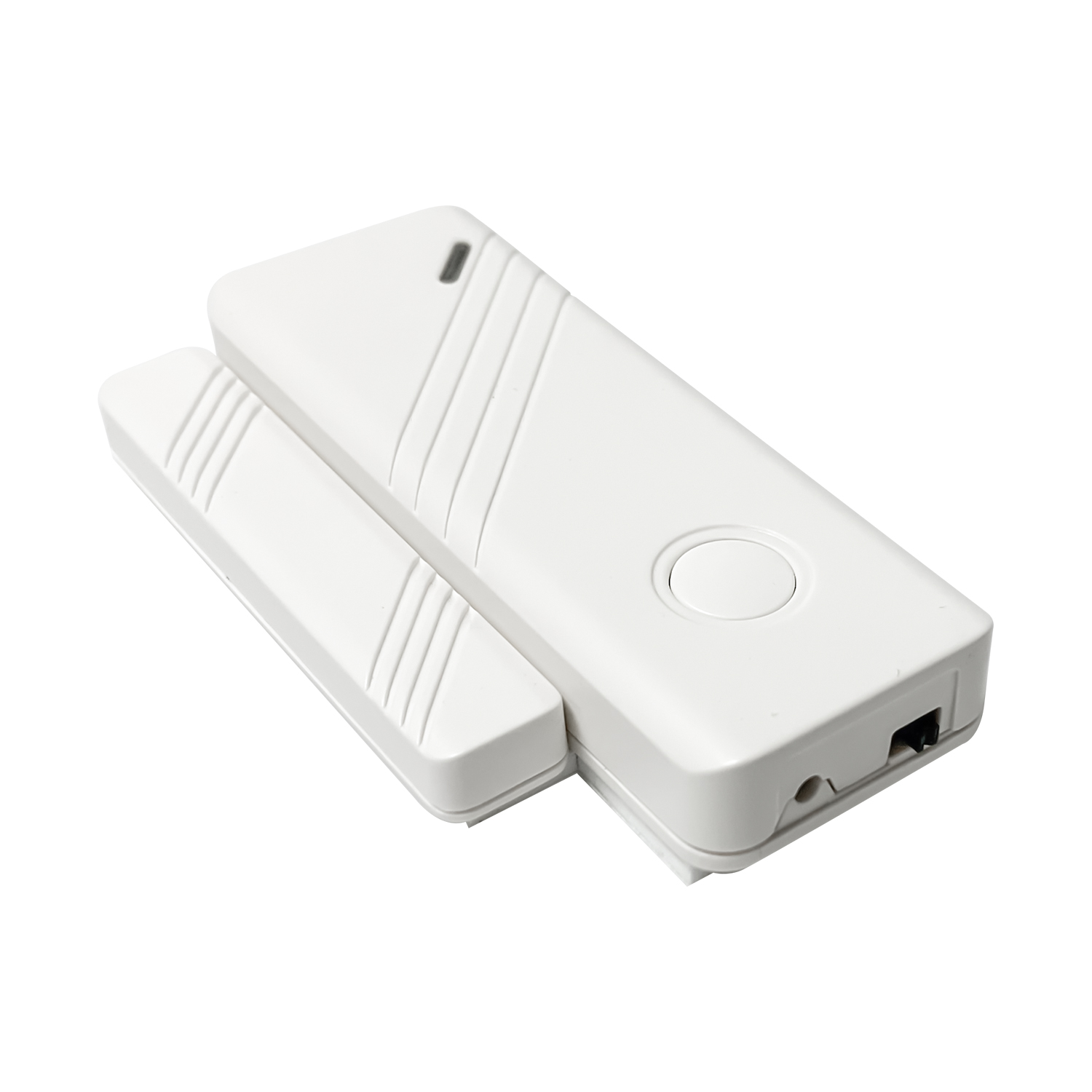

Window/Door Sensor

Battery type: DC 3V, CR2032 lithium battery

Static current: ≤3uA

Alarm current: ≤20mA

Wireless standard: ASK433.92MHZ

Wireless distance: ≥80m

Working environment: -20°C ~ + 55°C

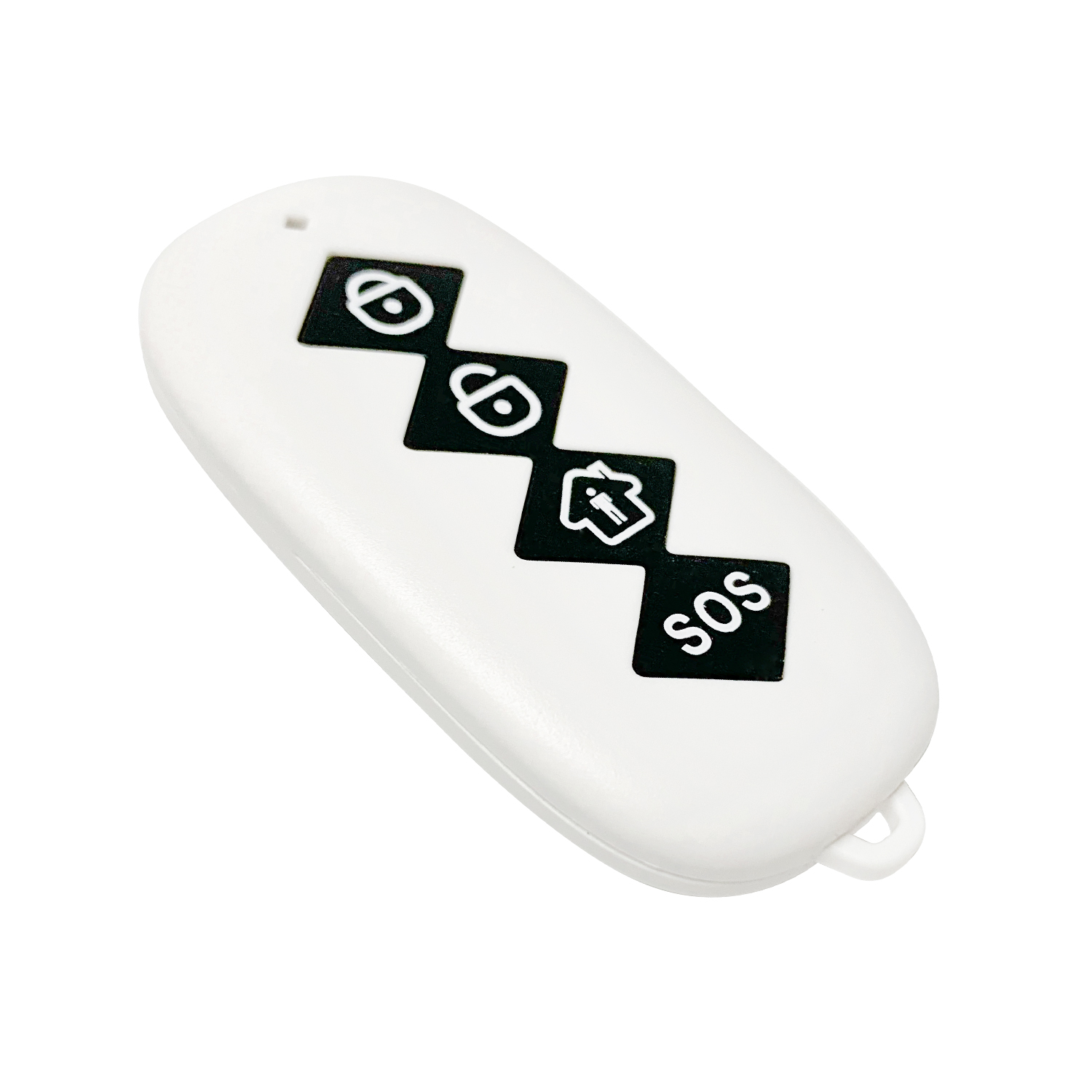

Remote Controller

Battery model: DC 3V, CR2032 lithium battery

Static current: <1uA

Alarm current: ≤10mA

Wireless standard: ASK433.92MHz

Wireless distance: ≥80m

Working environment: -20°C ~ + 55°C
